High NA EUV: High Numerical Aperture Lithography for Advanced Chip Production

In the relentless pursuit of technological progress, the semiconductor industry continues to push the limits of physics and engineering. Every new generation of processors, memory chips, and integrated circuits depends on breakthroughs in manufacturing precision. Among these, High NA EUV lithography (High Numerical Aperture Extreme Ultraviolet) has emerged as the most promising innovation driving advanced chip production into the next decade. This technology doesn’t just refine existing processes—it redefines them, enabling the creation of smaller, faster, and more power-efficient chips than ever before.

As global demand for computing power intensifies—with applications in artificial intelligence, autonomous vehicles, and quantum computing—the capacity to produce more transistors in less space becomes critical. High NA EUV lithography, led by ASML in collaboration with Intel, TSMC, and SK hynix, represents the industry’s next great leap. In this article, we’ll explore how this cutting-edge technology works, why it matters, and how it’s shaping the future of advanced chip production.

Understanding EUV Lithography and Its Evolution

Before diving into High NA EUV, it’s essential to understand its foundation: Extreme Ultraviolet Lithography (EUV). Traditional photolithography, which uses deep ultraviolet light (DUV) at wavelengths around 193 nm, has long been the backbone of semiconductor fabrication. However, as transistors shrank to scales below 10 nanometers, DUV reached its physical limits. Optical diffraction and pattern distortion made it increasingly difficult to print the minute features required for advanced chip production.

Enter EUV. By using light with a wavelength of only 13.5 nanometers—almost 15 times shorter than DUV—EUV lithography allows engineers to etch far finer details onto silicon wafers. This technological shift has enabled the production of transistors and interconnects at scales unimaginable a decade ago. Yet even EUV has its limitations, especially when it comes to pushing geometries below 2 nanometers. That’s where High NA EUV comes in.

What Makes High NA EUV Different

The “NA” in High NA EUV stands for Numerical Aperture, a measure of a lens system’s ability to collect and focus light. In lithography, a higher numerical aperture allows the system to resolve smaller features more accurately. The current generation of EUV scanners has an NA of 0.33, but High NA EUV raises this to an unprecedented 0.55. That might seem like a modest increase, but in the world of nanolithography, it’s monumental.

This jump in optical resolution allows chipmakers to print features nearly 1.7 times smaller with higher pattern fidelity. In practical terms, that translates to transistor gates approaching the atomic scale—key for continuing the trend of Moore’s Law in advanced chip production.

The Engineering Behind High NA EUV Systems

Developing a High NA EUV machine is an engineering challenge of staggering complexity. The Dutch company ASML remains the only manufacturer in the world capable of producing these systems. Each machine comprises over 100,000 components, including precision mirrors crafted by Carl Zeiss with surfaces so smooth that any imperfection larger than a few atoms would ruin the optical path.

Unlike traditional optics, High NA EUV systems use mirrors instead of lenses because EUV light is absorbed by almost all materials, including air. To manage this, the entire lithography process occurs in a high-vacuum environment. A pulsed laser vaporizes tiny droplets of tin (Sn), creating a plasma that emits EUV light at 13.5 nm. This light is then reflected through a series of mirrors and focused onto the wafer with sub-nanometer precision.

High NA EUV machines are also massive—some reaching the size of a small bus—and cost over $400 million each. Their sheer sophistication highlights the scale of investment required for the next phase of advanced chip production.

Why High NA EUV Matters for Advanced Chip Production

For decades, the semiconductor industry has relied on the principle that smaller transistors lead to faster, more efficient devices. High NA EUV enables manufacturers to print features below 2 nanometers with greater consistency, opening the door to new chip architectures and denser integration.

In advanced chip production, pattern precision directly impacts yield, power consumption, and performance. As devices become smaller, even atomic-level misalignments can degrade circuit reliability. High NA EUV mitigates this by improving pattern contrast and reducing stochastic defects—the random variations that can lead to faulty transistors.

This improvement also means fewer manufacturing steps. Previously, achieving similar resolutions required complex multi-patterning techniques that increased production time, cost, and risk of error. High NA EUV simplifies these workflows, making advanced chip production more scalable and economically viable.

Applications and Industry Adoption

The first wave of High NA EUV tools, known as the TWINSCAN EXE series, is being rolled out by ASML. Intel is among the early adopters, planning to integrate these systems into its Intel 18A and subsequent process nodes. The company expects High NA EUV to play a crucial role in achieving transistor densities beyond 1 trillion per square inch—an unprecedented milestone in advanced chip production.

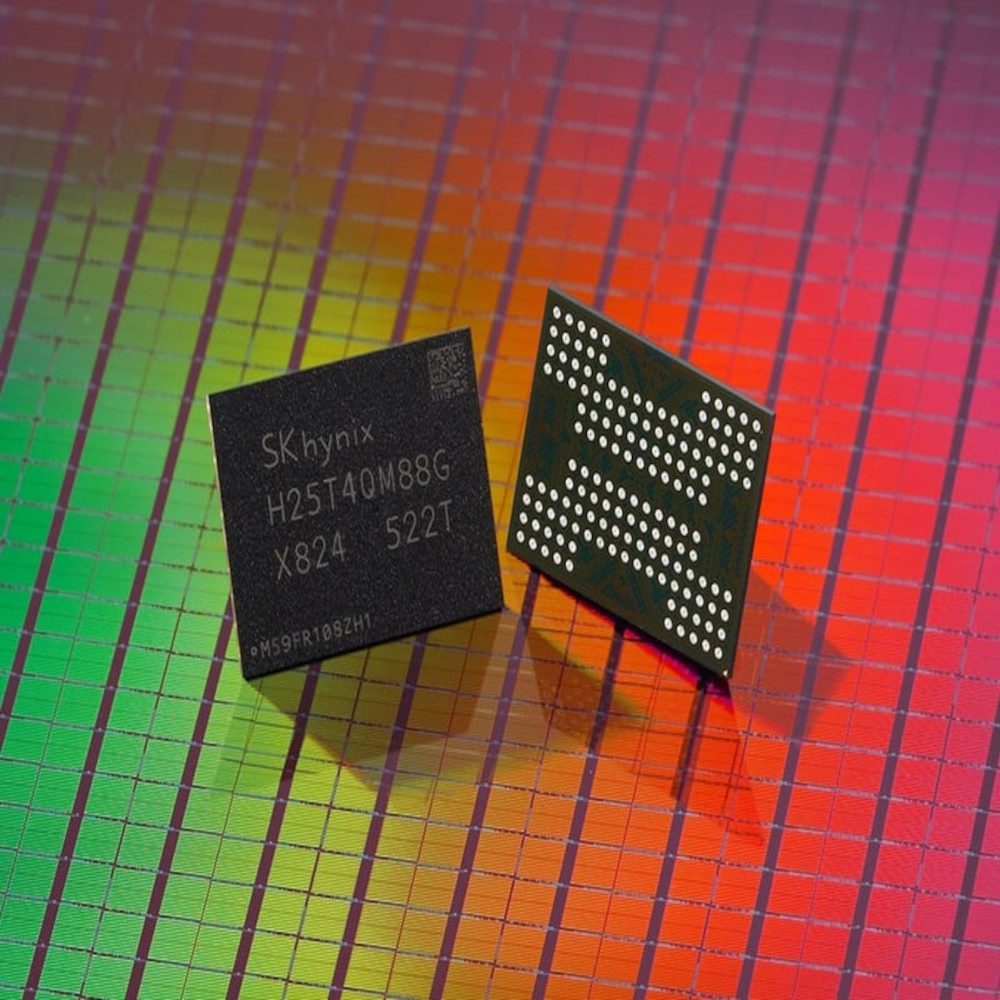

Meanwhile, TSMC and SK hynix are exploring High NA EUV for memory fabrication, including DRAM and next-generation 3D NAND. These applications benefit from the technology’s ability to produce smaller, more consistent patterns in memory arrays, boosting storage capacity and energy efficiency.

Research institutions like imec are also contributing, using High NA EUV platforms to prototype new process technologies and materials. This collaborative ecosystem ensures that the innovation pipeline for advanced chip production remains strong across both logic and memory sectors.

Technical Challenges and Limitations

Despite its promise, High NA EUV isn’t a silver bullet. One of its main challenges lies in depth of focus—the higher the numerical aperture, the shallower the focus range. This requires ultra-flat wafers and extreme alignment precision to maintain consistent imaging across large areas.

Another issue involves mask and pellicle design. EUV masks are reflective rather than transmissive, and with higher resolution, even minute imperfections can cause printing errors. Developing defect-free pellicles that protect these masks while maintaining optical performance remains a key obstacle.

Thermal management is another major concern. The intense laser pulses used to generate EUV light can deform optical components over time. Engineers must therefore design systems capable of maintaining stability across millions of exposures—no easy task in advanced chip production.

Economic and Environmental Implications

High NA EUV systems come with eye-watering costs, often exceeding $400 million per unit. Setting up a fab equipped with these tools can easily surpass $20 billion. Only a handful of companies—Intel, TSMC, and Samsung—currently have the resources to deploy them at scale. This concentration of capability could lead to greater industry consolidation, where only the most financially robust players can compete in advanced chip production.

On the environmental side, however, there’s a silver lining. By reducing the number of patterning steps, High NA EUV consumes less energy per wafer and reduces material waste. It’s a significant step toward more sustainable semiconductor manufacturing—a key consideration as global demand for chips continues to rise.

The Future Beyond High NA EUV

As remarkable as High NA EUV is, the semiconductor roadmap doesn’t end here. Researchers are already exploring Hyper NA EUV systems with apertures above 0.7, along with complementary technologies such as directed self-assembly (DSA), nanoimprint lithography, and hybrid quantum-classical computing architectures. Each of these innovations builds on the foundation laid by High NA EUV to further enhance advanced chip production.

Ultimately, this technology is more than a manufacturing tool, it’s an enabler of progress across every digital frontier. From accelerating artificial intelligence to powering data centers and next-gen mobile networks, High NA EUV represents the invisible backbone of tomorrow’s intelligent infrastructure.

Practical Insights for Engineers and Researchers

For professionals working in or studying semiconductor manufacturing, understanding High NA EUV is essential. Here are some practical insights:

• Master Optical Physics: Understanding diffraction limits and phase control is key to optimizing High NA EUV imaging.
• Focus on Metrology: As feature sizes shrink, measuring and verifying structures with atomic precision becomes critical.
• Collaborate Across Disciplines: High NA EUV involves optics, materials science, plasma physics, and mechanical engineering. Cross-field collaboration accelerates innovation.
• Prepare for Automation: Advanced lithography fabs rely heavily on AI-driven process control to maintain consistency and reduce variation.

Engineers entering this field should also familiarize themselves with simulation tools like PROLITH and advanced OPC (Optical Proximity Correction) software, which are integral to High NA EUV process optimization.

Conclusion: A New Era for Advanced Chip Production

The transition from EUV to High NA EUV marks one of the most significant technological shifts in semiconductor history. It’s a step that not only extends Moore’s Law but also redefines how humanity engineers computational power. By achieving unparalleled precision, High NA EUV positions advanced chip production at the heart of every technological revolution yet to come.

From mobile processors to quantum accelerators, the benefits of this innovation will ripple across industries for decades. It is, in essence, the silent engine of progress driving the digital world forward.

What do you think—will High NA EUV be the last major lithography breakthrough, or just the beginning of something even greater?

FAQ: High NA EUV Lithography

• What does “High NA” mean? It refers to “High Numerical Aperture,” an optical term describing the ability to capture light with greater precision, crucial for resolving smaller chip features.
• Who developed High NA EUV technology? The technology is primarily developed by ASML in collaboration with Intel, TSMC, SK hynix, and imec.
• How much does a High NA EUV machine cost? Each system costs approximately $400 million or more, making it one of the most expensive manufacturing tools ever built.
• What problems does it solve? High NA EUV enables smaller, faster, and more power-efficient chips by improving resolution and reducing multi-patterning complexity.
• When will we see products made with it? Intel and TSMC are expected to begin using High NA EUV for commercial advanced chip production between 2025 and 2026.
